Hookwire
Hookwire

The disposable hookwire electrodes are used for intraoperative neuromonitoring, more precisely for recording electrophysiological signals. The recording wire has a minimal diameter for the best comfort of the patient, making it particularly suitable for dynamic EMG analysis. After the electrode wire is inserted into desired depth the hypodermic needle is withdrawn, leaving the flexible electrode’s wire securely fixed in the muscle.

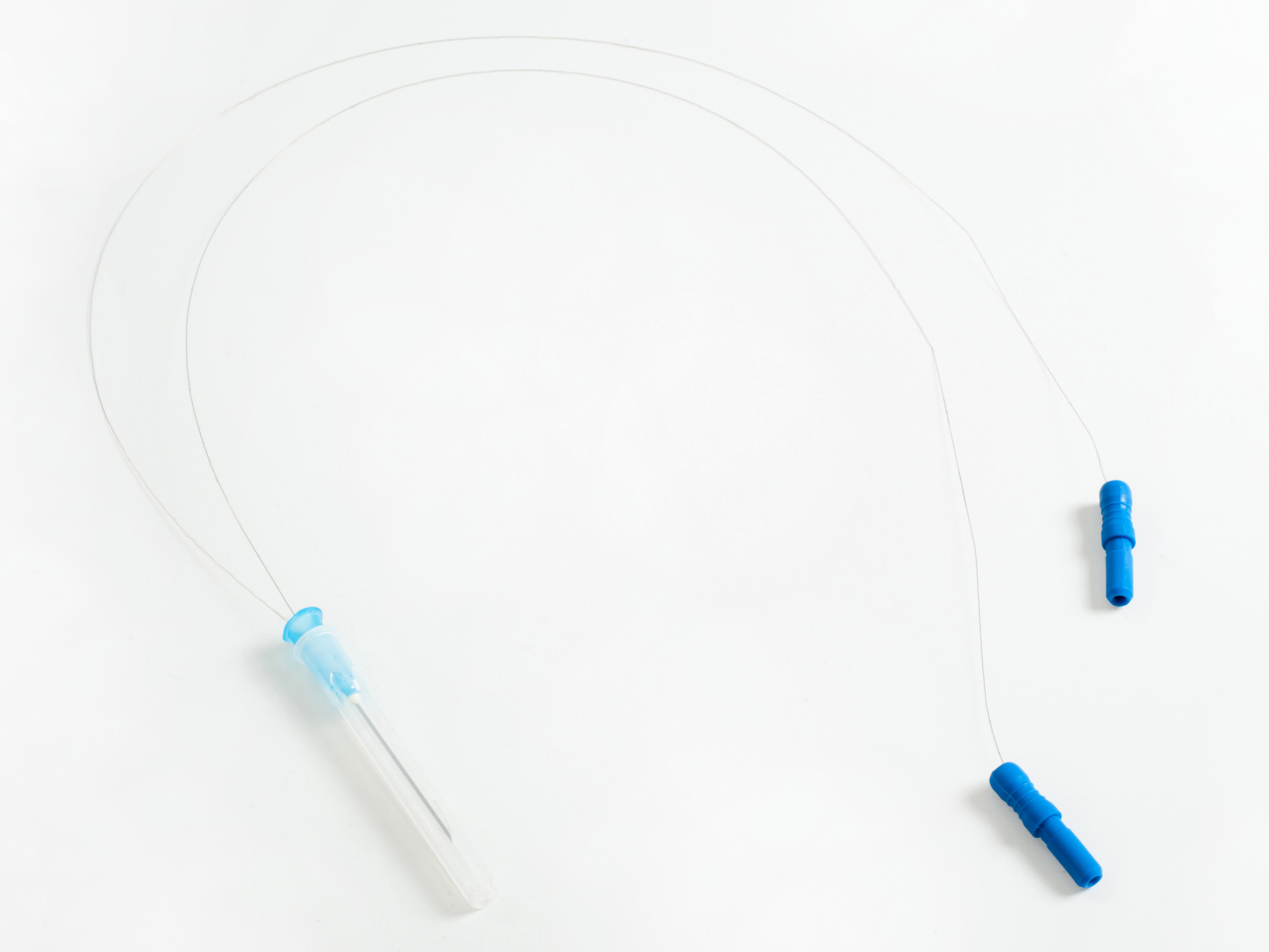

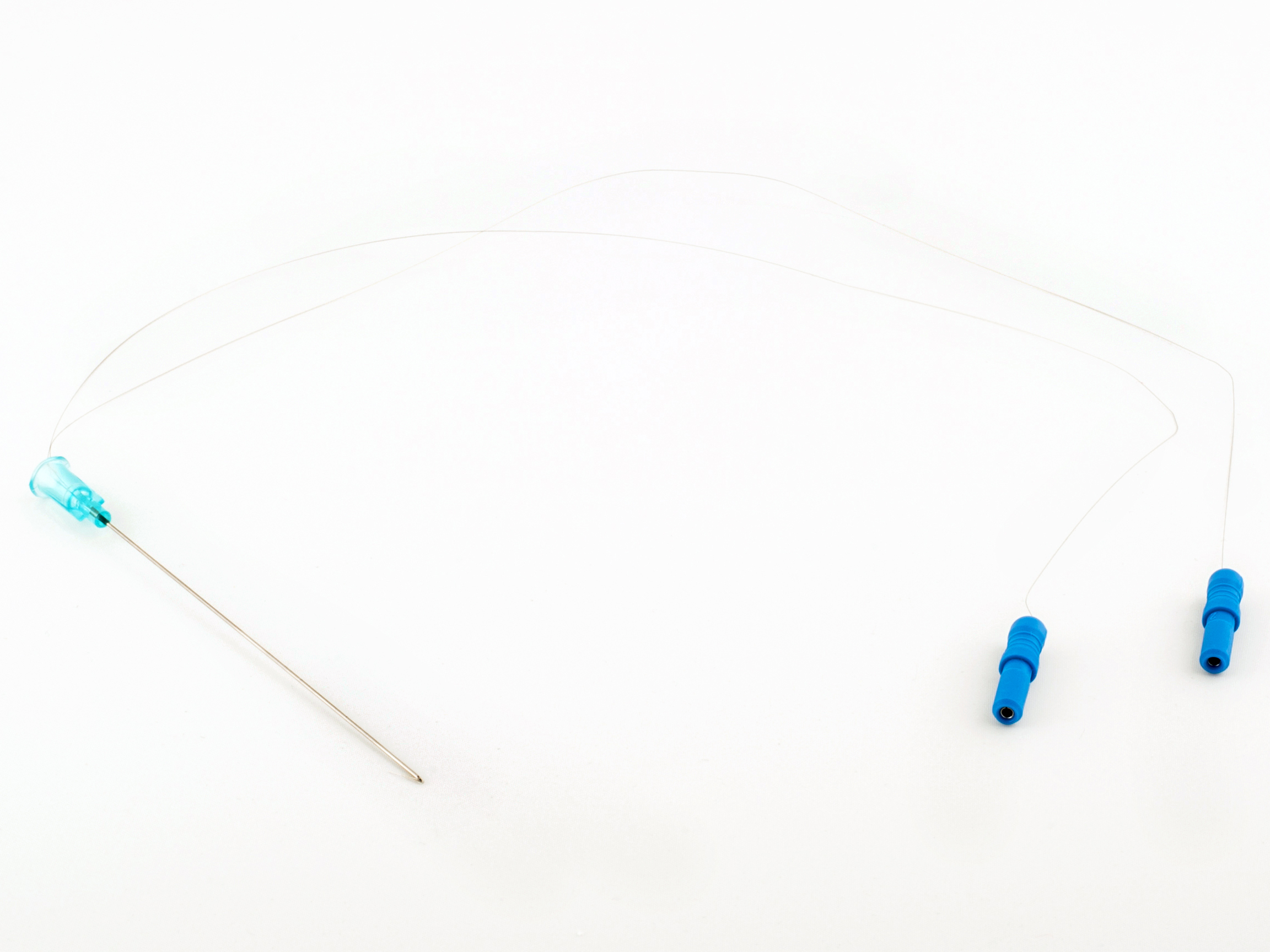

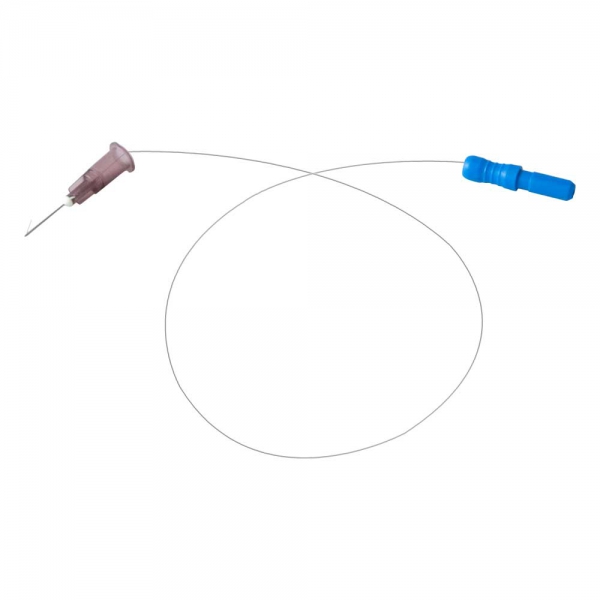

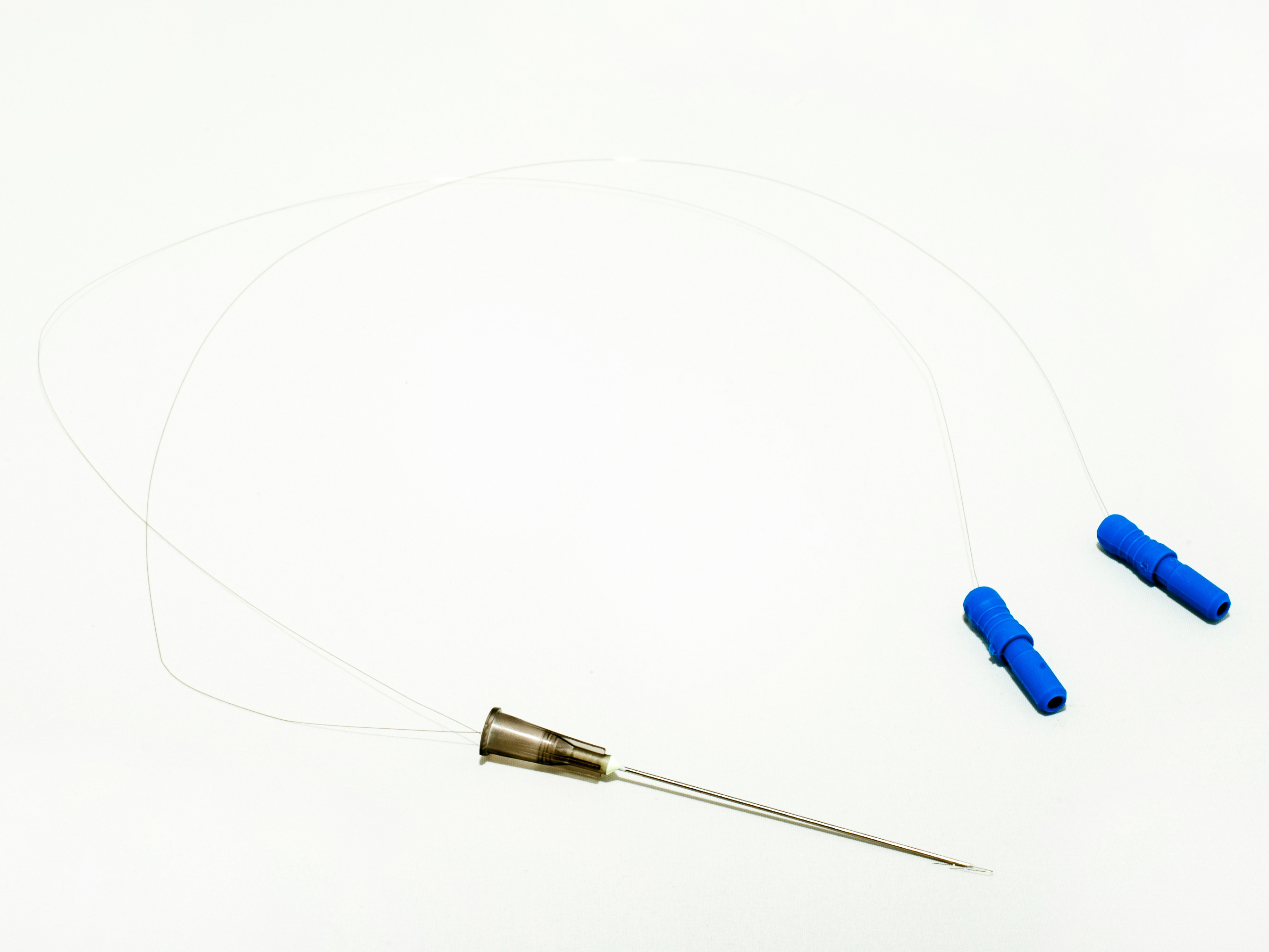

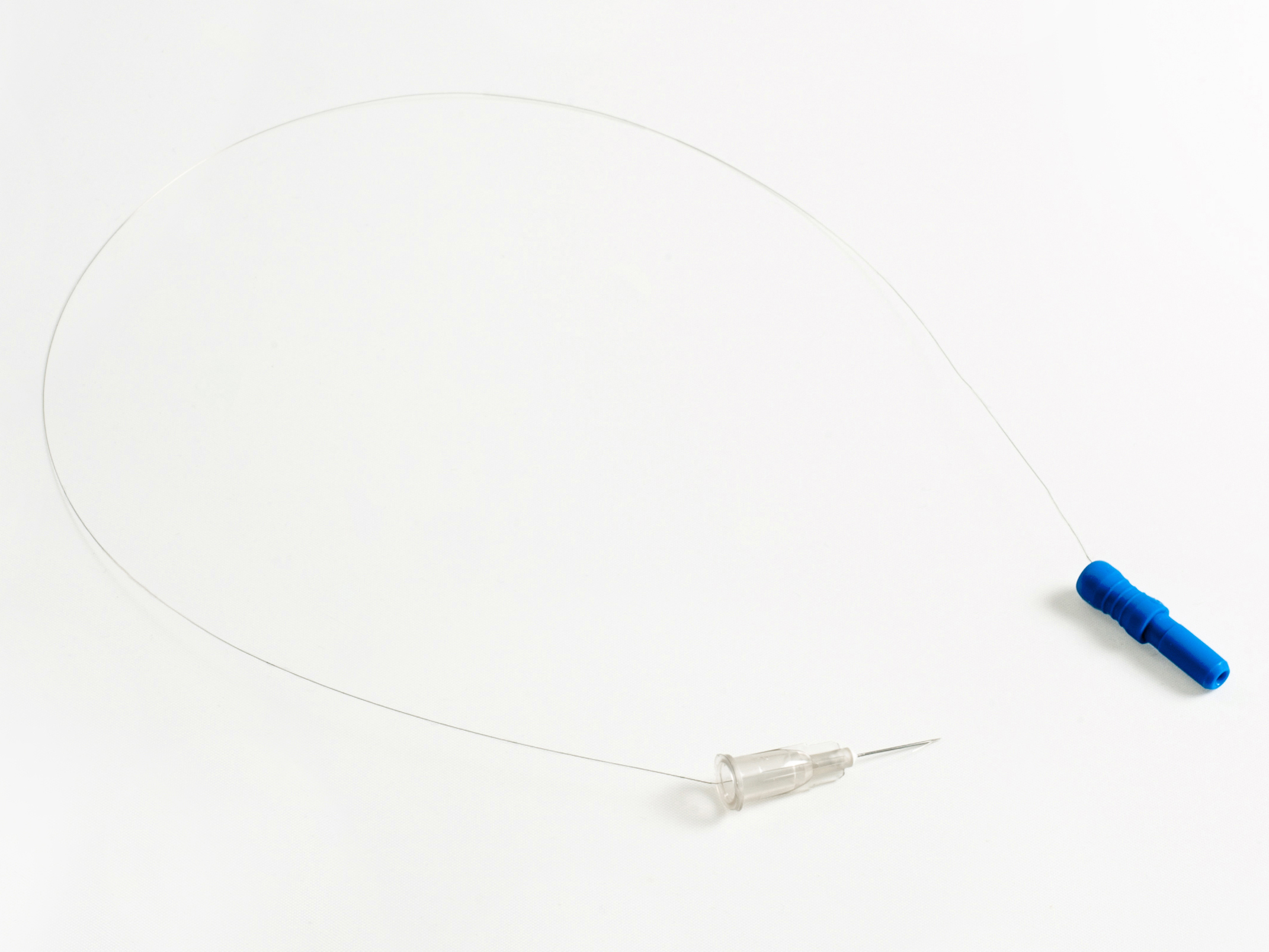

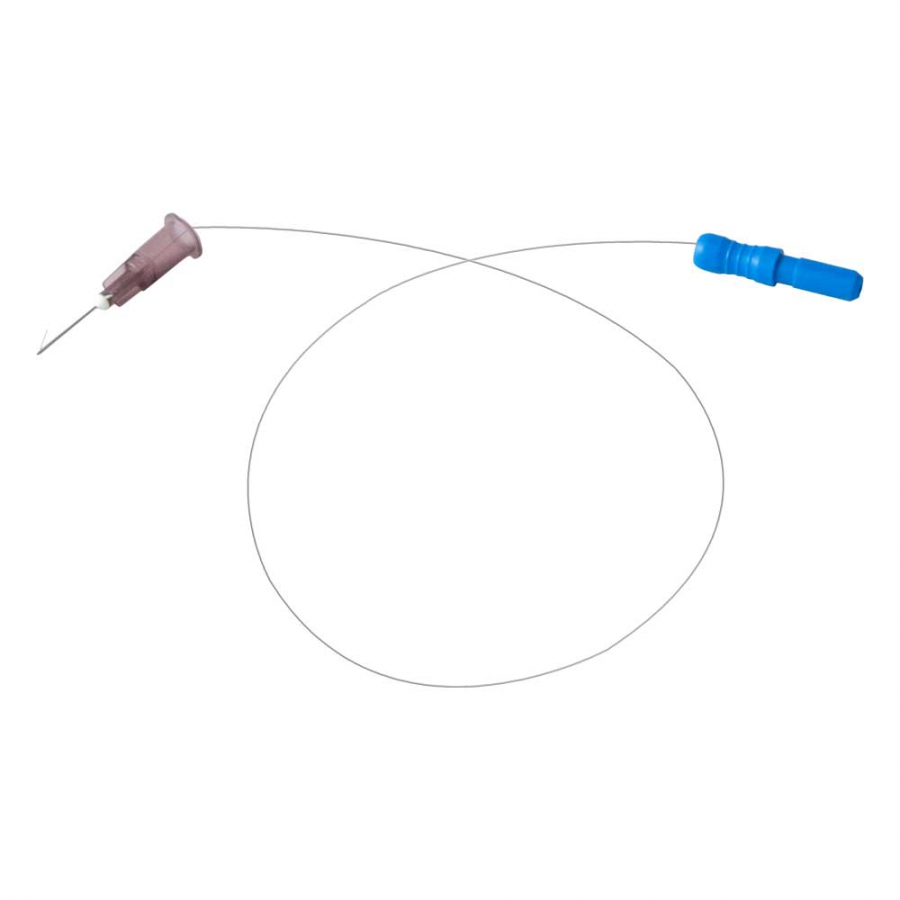

The hookwire electrode consists of 40cm PTFE insulated stainless steel wire threaded through a hypodermic needle. The needle is 13mm in length and has 0,45mm in diameter(26G). The end of the wire is positioned so 3mm of wire exits the end of needle and is bent at 180 degrees angle from the needle. The other end of the lead wire terminates with standard 1.5 mm touchproof connector DIN 42802.

Major Features



  • The length of the wire and needle can be customized to specific preferences

  • Available in packages of 6 or box of 12 electrodes

  • Sterilization ETO, single use, shelf life 36 months

  • Lead-free, Latex-free, BPA-free lead wire, DEHP-free lead wire

  • RoHS compliant

  • Lead wire core - PTFE insulated stainless steel wire AISI 302

  • Connector DIN 42802 (to avoid extension cables) or stripped wire ending
